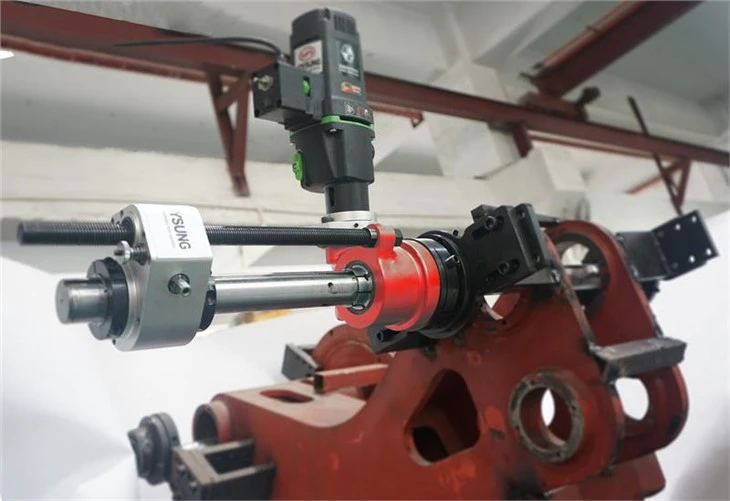

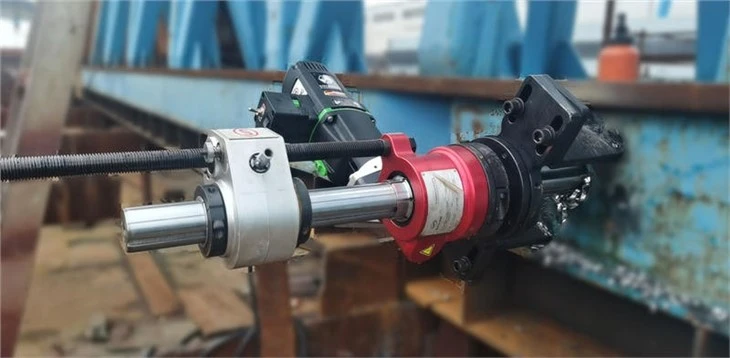

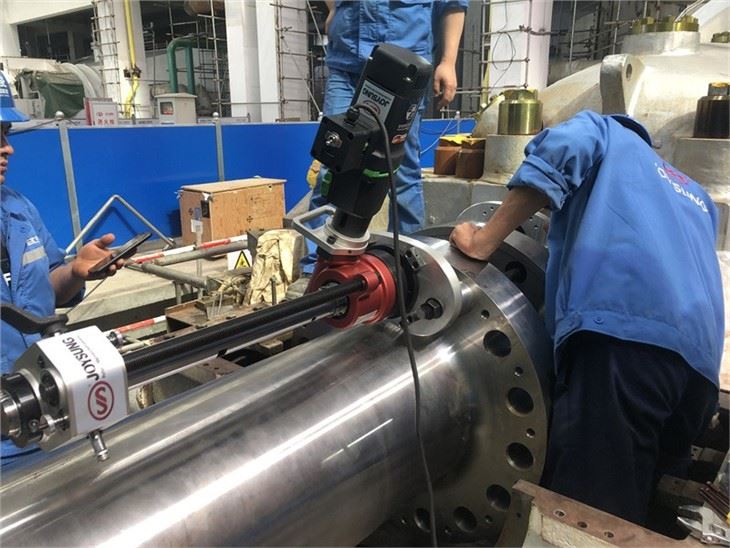

TDG50IMP features:
1. Increased Versatility: With a replaceable boring bar, line boring machines can now accommodate different sizes of boring bars. This means that the machine can be used for a wide range of boring applications, thereby increasing its versatility.
2. Reduced Downtime: Replacing a worn-out boring bar is a less expensive and less time-consuming process than replacing the entire machine. Therefore, with a replaceable boring bar, downtime is significantly reduced, and productivity is increased.
3. Improved Accuracy: Using replaceable boring bars can make the line boring process more accurate. This is because the bars can be easily removed and replaced with new ones of the required size without affecting the alignment of the machine.
4. Cost-Effective: Investing in a line boring machine with replaceable boring bars is cost-effective in the long run. Instead of having to replace the entire machine when the boring bar gets worn-out, the bar can be easily replaced at a lower cost.
5. Easy Maintenance: The replaceable boring bar feature makes maintenance of the machine easier. Regular replacement of the boring bar ensures that the machine operates at optimal performance and extends the life of the machine.
6. User-Friendly: Line boring machines with replaceable boring bars are user-friendly. The process of replacing a boring bar is not complex, and the operator can do so with minimal training.
Specifications:
Boring Diameter | 55 – 400mm(standard) 35-400mm(optional) |
Boring Stroke | 280mm |
Feed Rate | 0-0.5mm/rev |
Bar RPM | 0-49、49-98 |
Drive Power Unit | 110V/230V, 50/60Hz, 1800W |
Boring Bar | ∅50×1828mm,∅50×2438mm |
∅30×1200mm | |
Shipping Weight | 125kg |
